Wireless Wearable Sensor - WWS
Accelerate your wireless wearable
That’s why we created the Genesys Wireless Wearable Sensor (WWS) platform.
A Bluetooth sensing device may look simple, but building it right is far from easy. Selecting the right components, minimising footprint and power consumption, debugging software, and balancing miniaturisation with functionality, these challenges can slow down any product team. ​​​​​​​​​

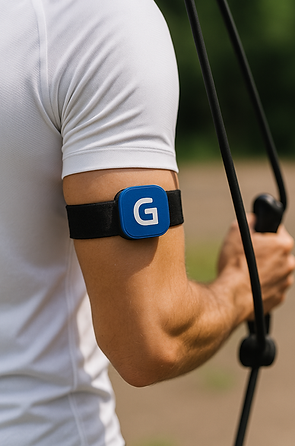

The WWS is a compact, battery-powered Bluetooth device that logs sensor data and seamlessly transfers it to a companion mobile app.
FLEXIBLE
Add your own custom sensors alongside the built-in ones.
READY-TO-GO
Core hardware and software are already in place, so you can focus on your end user experience.
FASTER TO MARKET
Our modular design and proven firmware modules cut development cost, reduce technical risk, and accelerate delivery.
A regulated version is available to speed up pathways to medical certification.
Built-in sensors
Accelerometer +
Temperature
On-board memory
Data logging + Device configuration
Customisable housing
Snap-fit lid, adaptable base
Compact size
32 mm × 14 mm
BLE connectivity
Real-time data streaming to mobile app
Battery options
Primary or rechargeable
coin cell
Embedded Microcontroller
The low-cost, low-energy but powerful nRF52 is used to run your application, as well as the supporting functions. ​
In-built Sensors
In-built common sensors are included on the baseboard to facilitate the key features and functions of most wearables.​​​​
Firmware
The WWS comes out of the box with all the software for running the microcontroller peripherals for interfacing with system devices.
Mobile App Integration
The Genesys Companion Mobile App provides over-the-air updates, wireless debugging and more.​​
​
​Bluetooth and Communication
The nRF52 comes with Bluetooth 5.2 with enough power and range to suit most applications. It also has other wireless communication options and USB.​​
​​Powering
The low-power platform can be used with both rechargeable and primary coin cells, and includes a battery fuel gauge.​
Memory
An SPI flash and an EEPROM with EUI-64 identifier are included for unique device identification, parameter storage and data logging.
​​​​Sensor Expansion Capability
The baseboard includes board-to-board connectors to add a custom sensor board. UART, I2C and SPI are used for connecting to sensors and peripherals on the sensor board.
Add your own sensors
Flexible design for custom applications​​
Interface (lid) options can include those that are:
​
​​Optically transmissive (cameras, IR)
​
Gas or chemically porous (CO2, pH)
​
Acoustically transmissive (microphone, piezo)
Electrically conductive (conductivity)
​
Force transmissive (pressure)
​
Thermally conductive (temperature)​​
Companion Mobile App
The Genesys Companion Mobile App, fully integrated with the Wireless Wearable Sensor, ensures reliable data, easy management, and clear visualisation.
Key features include:​
​​
-
Reliable connection: Connection management for reliable data streaming with automatic retries, timeouts, CRC, and packet tracking.
-
Sensor parameter management: Easily manage your device’s operation with configuration tools in App.
-
Graphical data display: Your choice of tabular and graphic data widgets with a customisable dashboard.
-
Cross platform: Supports both IOS and Android via React Native, with UI components that run on both platforms.
-
Cybersecurity: Compatible with regulatory requirements in all major jurisdictions.
​
-
User interface: Choose from a selection of standard wireframes with in-built navigation to quickly customise your user interface.
-
Branding: Quickly skin the App in your corporate colours and other branding elements.
-
User management: User account management facilities and password protection, with different access privileges and interfaces for end users, administrators and technicians/developers.
-

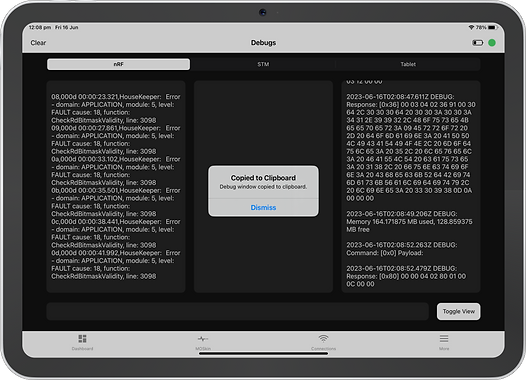

Product and development support: Over-the-air updates, BLE streaming debugs, command line input to device from App, logging of software events, file system access, manual file transfer and more.
​​
​
For full customization, start with the Genesys Template Mobile App
